XRZ zero turn moweraxis_banner_shadow

click to view CRZ video

A Quality Cut Every time with TufDeck™

The rugged design of the new BOB-CAT® TufDeck™ Professional-Grade Mower Deck with patented Double-Wave Baffle System makes grass stand up and take what's coming to it from blades that spin up to 18,800 fpm.

An extra-wide polymer impact resistant discharge chute shrugs off dings while fanning clippings fine - eliminating clumps for a crisp clean cut. Choice of 48-, 52- or 61-inch decks.

Mow with Confidence Warranty!

6-year / 600 hour  warranty - XRZ
6-year/1000 hour warranty - XRZ Pro


QUICK TIPS for your BOB-CAT: XRZ

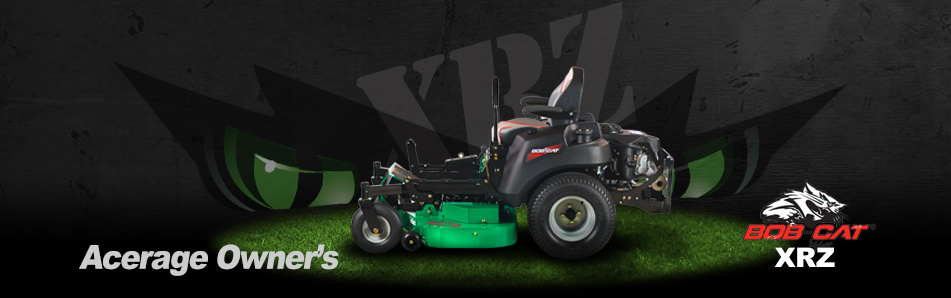

BOB-CAT XRZ - Acreage Owner

Bred to be in a class all its own, the new BOB-CAT® XRZ™ is packed with premium performance and comfort features that rival commercial mowers.

Comfort & Control

Designed with your comfort in mind, the new BOB-CAT® XRZ™ features a premium high back elastomeric vibration control (EVC) seat with armrests that reduce vibration for all-day riding comfort. Wide 22-inch rear drive wheels help smooth the ride over undulating terrain and provides added traction on slopes. Cutting height can be easily controlled on-the-fly with the quick-lift foot pedal allowing for cutting ranges from 1.5 to 4.875 inches in quarter-inch increments or instantly as needed.

Reduced Maintenance

The XRZ’s open frame design provides easy access to the engine, filters, belts, battery and more – taking the hassle out of routine maintenance. Flip up foot plate allows for easy access to belts and pulleys for cleaning and service. And, because all BOB-CAT® mowers share a common design, parts are readily available and affordable too.

Peak Productivity

The new BOB-CAT® XRZ line is powered by reliable Kawasaki® FR engines and commercial drive system powered by Hydro-Gear® ZT-3100 transaxles to produce a ground speed of up to 8 mph. Coupled with a large 6 gallon fuel capacity fuel tank, you have more than enough power and run time to tackle the largest properties.


BOB-CAT XRZ Zero Turn Mower Specifications

  • Power Options

  • Deck

  • Drive

  • Tyres

  • Fuel

  • Dimensions

  • Operator Platform

Model

Description

Engine Make

Displacement

942610

XRZ™ 48 Kawasaki® FR651V

Kawasaki® FR651V

726 cc [44.3 cu. in.]

942611

XRZ™ 52 Kawasaki® FR691V

Kawasaki® FR691V

726 cc [44.3 cu. in.]

942612

XRZ™ 61 Kawasaki® FR730V

Kawasaki® FR730V

726 cc [44.3 cu. in.]

Model Deck
 Blade Tip Speed  Blades

XRZ™ 48 Kawasaki® FR651V

48" SD

17,365 fpm @ 3550 engine RPM

3-16" High Lift Offset .250" thick

XRZ™ 52 Kawasaki® FR691V

52" SD

18,142 fpm @3550 engine RPM

3-16" High Lift Offset .250" thick

XRZ™ 61 Kawasaki® FR730V

61" SD

18,809 fpm @ 3550 engine RPM

3-16" High Lift Offset .250" thick


Deck Design: TufDeck™ 10 gauge fabricated, welded and reinforced steel.
Patented Double-Wave Baffle System increases lift for a better cut.

Leading Edges: Adjustable 2 positions Deck Skirts: 7-gauge skirts

Anti-Scalp Rollers: Adjustable anti-scalp rollers

Spindle Type: Top mounted 5" diameter — 4 bolt maintenance-free with 1" shaft and split steel pulleys

Bearings: Double-sealed, precision ground ball bearings

Cutting Height: 1.5 inches - 4.875 inches in .25 inch increments

Discharge: Oversize molded polymer chute controls airflow to improve clipping dispersal

Deck Lift Type: Quick-lift-foot pedal

Deck Drive: 105 ft. lb. Warner electric clutch — Single drive belt - for 48” and 52” decks

           125 ft. lb. Warner electric clutch — Single drive belt - for 61” decks

Model

Ground Speed

XRZ™ 48 Kawasaki® FR651V

12 km/hr

XRZ™ 52 Kawasaki® FR691V

12 km/hr

XRZ™ 61 Kawasaki® FR730V

12 km/hr


Transmission:
Commercial grade - Hydro-Gear ZT-3100 twin hydrostatic transaxles

Pump Size: 10 cc with spin off individual oil filters for easy maintenance

Model

Front Tyres

Rear Tyres

Brake

XRZ™ 48 Kawasaki® FR651V 13 x 5.00 – 5 pneumatic 22 x 11.0 – 10 Internal integrated parking brake
XRZ™ 52 Kawasaki® FR691V 13 x 5.00 – 5 pneumatic 22 x 11.0 – 10 Internal integrated parking brake
XRZ™ 61 Kawasaki® FR730V 13 x 5.00 – 5 pneumatic 22 x 11.0 – 10 Internal integrated parking brake

Fuel Grade: Unleaded

Fuel Capacity: more than 22 litres

Hour Meter Digital: — Digital — Standard

Model

Machine Weight/ Wet

Machine Length

Machine Height

XRZ™ 48 Kawasaki® FR651V

746 lbs - 334 Kg

76" - 193 cm

45" - 114.3 cm

XRZ™ 52 Kawasaki® FR691V

762 lbs - 341 Kg

76" - 193 cm

45" - 114.3 cm

XRZ™ 61 Kawasaki® FR730V

805 lbs - 360 Kg

79" - 200 cm

45" - 114.3 cm

Operator zone adjusts easily for a comfortable ride and makes BOB-CAT® a perfect fit for any operator. The custom operator zone also provides maximum control with minimal effort.

  • Elastomeric fabric seat suspension to isolate vibration and absorb shock for a better all-day ride
  • Motion control lever design yields more legroom and provides smoother control

Seat: High Back EVC (Elastomeric Vibration Control) for a smooth ride - Fore and Aft Adjusters - Armrests
